TE Air e5M
£3,150.00
Shipping and VAT calculated at checkout.

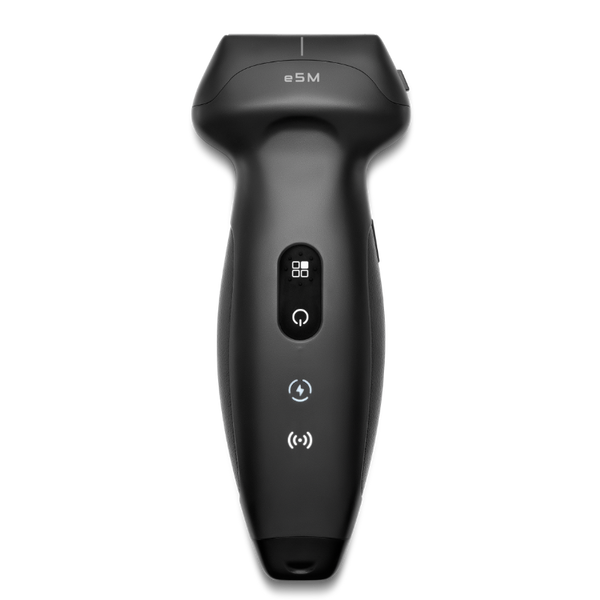

TE Air wireless handheld ultrasound system
Translation missing: en.accessibility.collapsible_content_title
Warranty details:
Your TE Air comes with a 1-year standard warranty from activation date. You also have the option to purchase an additional two years of warranty coverage. Air

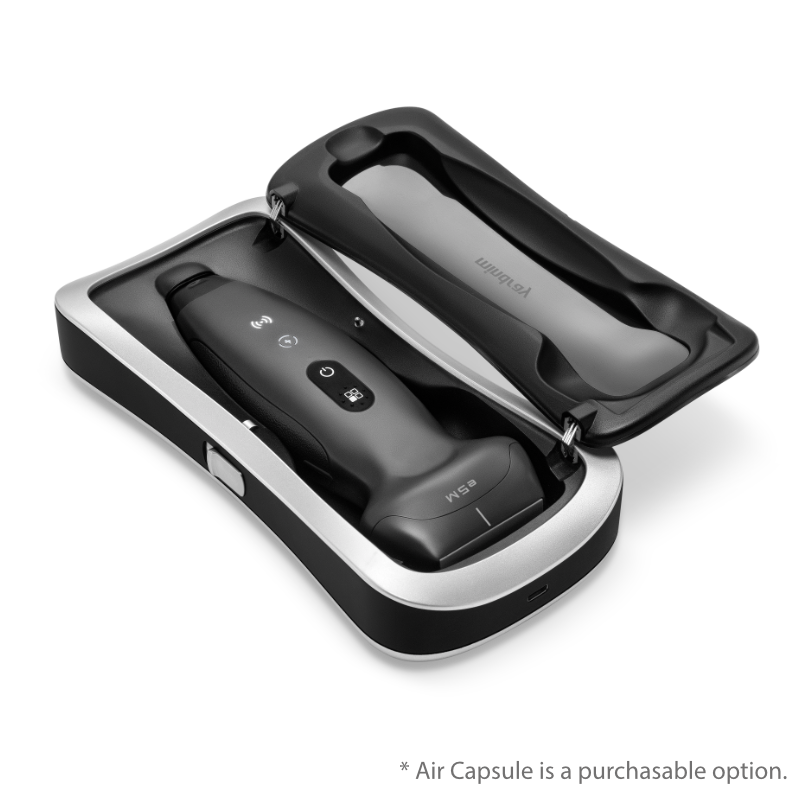

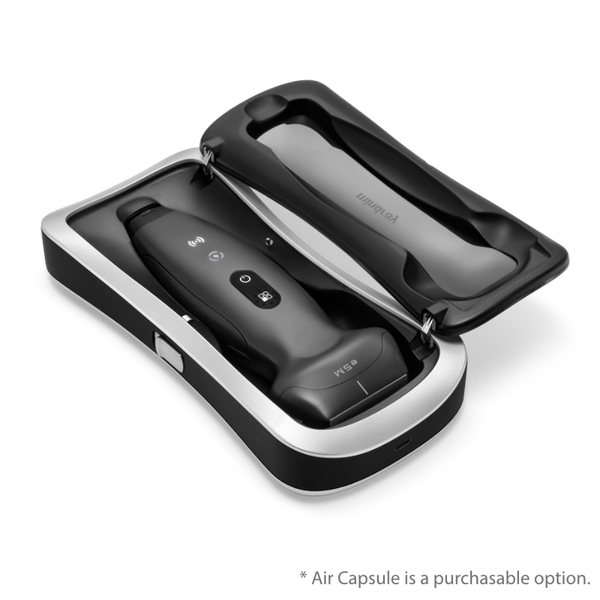

Capsule and others consumable items are warranted to 6 months from the date of shipment. Mindray provides complete installation video and online support, does not provide on-site installation services. We will provide repair and replacement service during the warranty period (e.g. excluding damage resulting from abuse or misuse or cosmetic issues) and limited to replacement not more than once in any twelve (12) month period. Software updates and upgrades for the TE Air System Solution will be available via the Google Play store and Apple store.

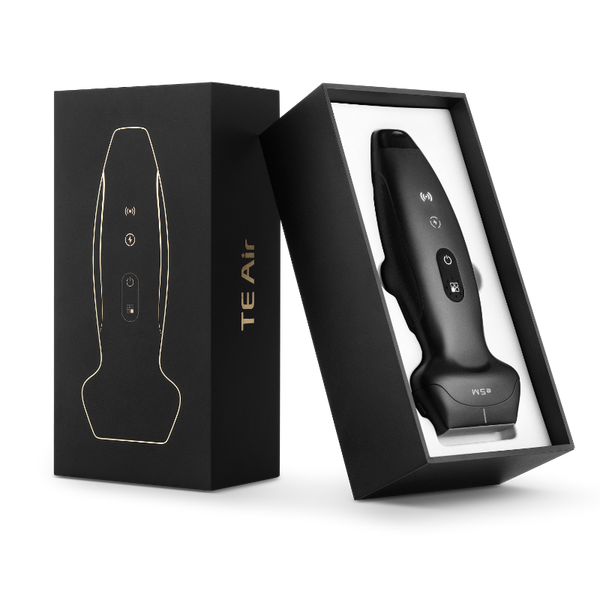

What's in the box?
| Wireless Probe | Charging Cable | ||
 |
 |
 |
 TE Air App (Free Available on iOS & Android) |
Confident whole-body scanning
- Single head with 20+ presets, without frequently switching probes
- Various scanning modes
-
![]()

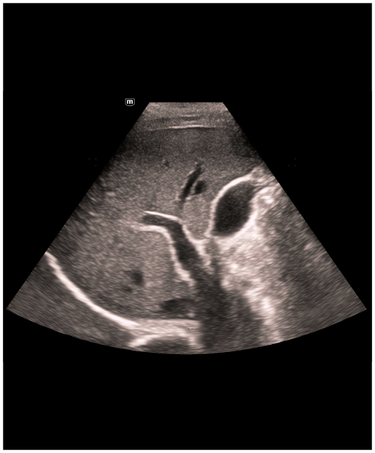

B Mode
-
![]()

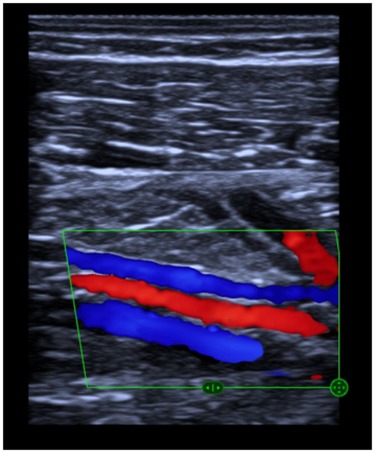

Colour Mode
-
![]()
PW Mode
-
![]()

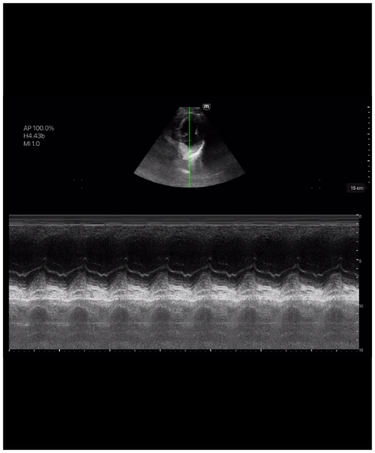

M Mode
-
![]()

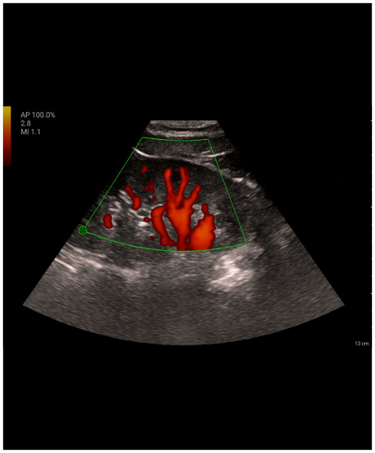

Power Mode
Extreme smart
-
![]()

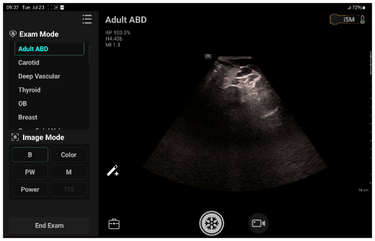

iTouch+: One-click setting adjusting to optimize the image quality
- Automatic detect the anatomy and switch exam mode for liver, kidney, thyroid and carotid
- Optimize the preset for best performance
-
![]()

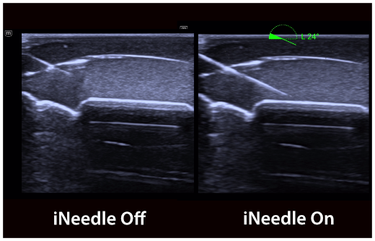

iNeedle: needle enhancement technology
- Accurate automatic needle angle tracking and optimizing by degree
- Max 40°and Min 1 °adjustment
Prepared for more chances
iScanHelper
Dedicated inbuilt tutorial tool, providing users with guidance on 'how & what' of ultrasound scanning.
Remote Help
Mindray's collaboration solution for remote guidance, training, quality control, case discussion, etc.
- Integrate Mico+ into the App, sharing real-time ultrasound and synchronize ultrasound images, audio and video to the terminal device
- Support sharing original ultrasound images to Mico+
High efficient workflow
iWorks
Standardize and simplify the workflow, completing a full set of scans simply by following the guidelines.
-
![]()

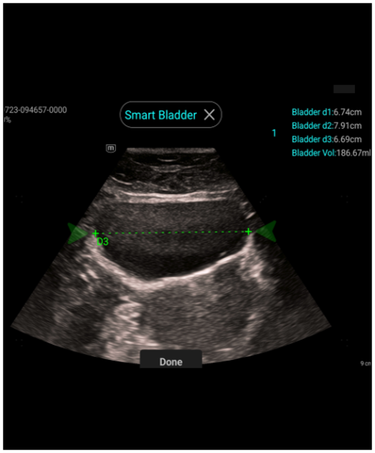

Smart Bladder
Automatically detect three diameters of bladder, and calculate the bladder volume
-
![]()

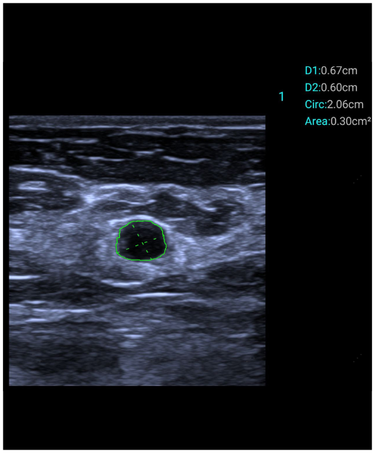

Smart Calc
Semi-automatic diameter and area measurement of lesions
-
![]()

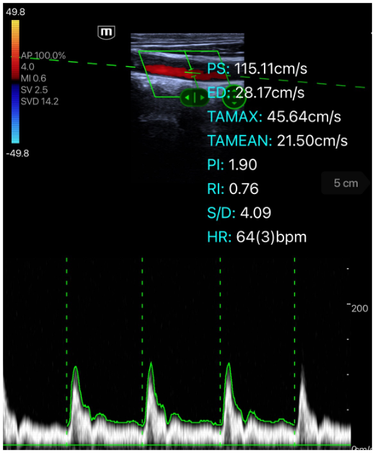

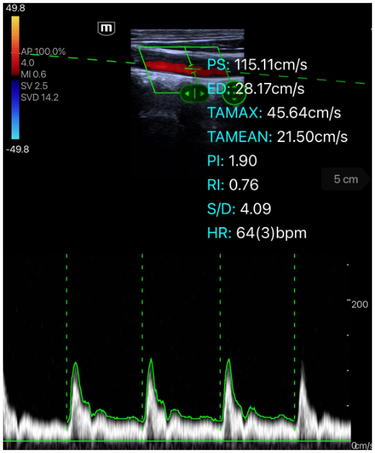

PW Auto Calc
Automatic tracing and measurement: PS, ED, TAMAX, TAMEAN, RI, PI, S/D, HR
FAQ
Installation
1. What if a crash occurs during TE Air App running?
Ensure that the application software is downloaded from the official platform and the equipment used meets lowest configured operating environment of TE Air App. You can check the specific operating environment requirements in the accompanying TE Air Operator's Manual.
2. What if TE Air can’t be activated?
After connecting the transducer for the first time, activate the transducer by using the activation code. Make sure that your device is connected to the wireless or cellular network. In addition, the validity period of the activation code is 24 hours. A new application is required after the timeout. If the problem persists, please contact the local service department.
3. What if the APP cannot be connected to the TE Air ?
Firstly, long press the power key to power on the probe, and check whether the Wi-Fi connection indicator is blinking. Secondly, check whether the hotspot of probe’s Wi-Fi starting with MR can be found from the Wi-Fi list of the device; If no, long press the power key for 6 seconds to force shutdown, then restart the probe and try again. If the problem persists, contact the local service department.
4. What to do if TE Air cannot be powered on?
Please check the status of the Battery status indicator. If the indicator blinks in orange, it indicates that the level of battery is too low. Please connect the power cable or put it into the air capsule for charging for some time before attempting to start the device.
5. how to obtain the product warranty period for TE Air?
The warranty of TE Air starts from the day when it is activated. When activating TE Air for the first time, please fill in the User Information completely so that Mindray can record the information accurately in the system. Please rest assured that all the information will be kept confidential. You can also contact the local service department for the product warranty information.
Use
1. TE Air?How to quickly learn the operation method of TE Air?
We designed a Quick Start Guide in TE Air App. You can learn it by visiting “Help – Quick Start Guide” on App’s menu.
2. How to upgrade new software functions?
You can purchase the optional KEY through the online shopping mall or contact the local service department for consultation.
3. How to obtain technical support?
You can check the phone number and email address of the service department of each country, and contact the local service department by phone or email for support.
4. How to maintain the effective connection between TE Air and the App?
Please make sure that the wifi function of the device is turned on properly and the physical distance between the device and TE Air is within 3 m.
Maintenance
1. What information should be provided when you report a problem?
Detailed information can help us to quickly troubleshooting and solve the problem. Please provide the fault description, picture or video, TE Air’s SN, hospital name, location, contact person, and contact information as much as possible.
2. What do you do if the TE Air cannot be charged and powered on?
Firstly, please check the description of power adapter to confirm whether it could output 5V voltage. Then please check whether the charging interface is in place and whether the pins are dirty. If the problem persists, please contact local service department.
